What is the FLEX-Base (NV-FLXLK-BSE) extender solution?

The NVT Phybridge FLEX-Base Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch delivering 10/100Mbps symmetrical (full duplex) and PoE over Multi-Pair UTP infrastructure with distances up to 2,000ft (610m).

The FLEX-Base Extender Solution, IP IoT devices can be connected to the existing Multi-Pair UTP cabling infrastructure - CAT 5e/6.

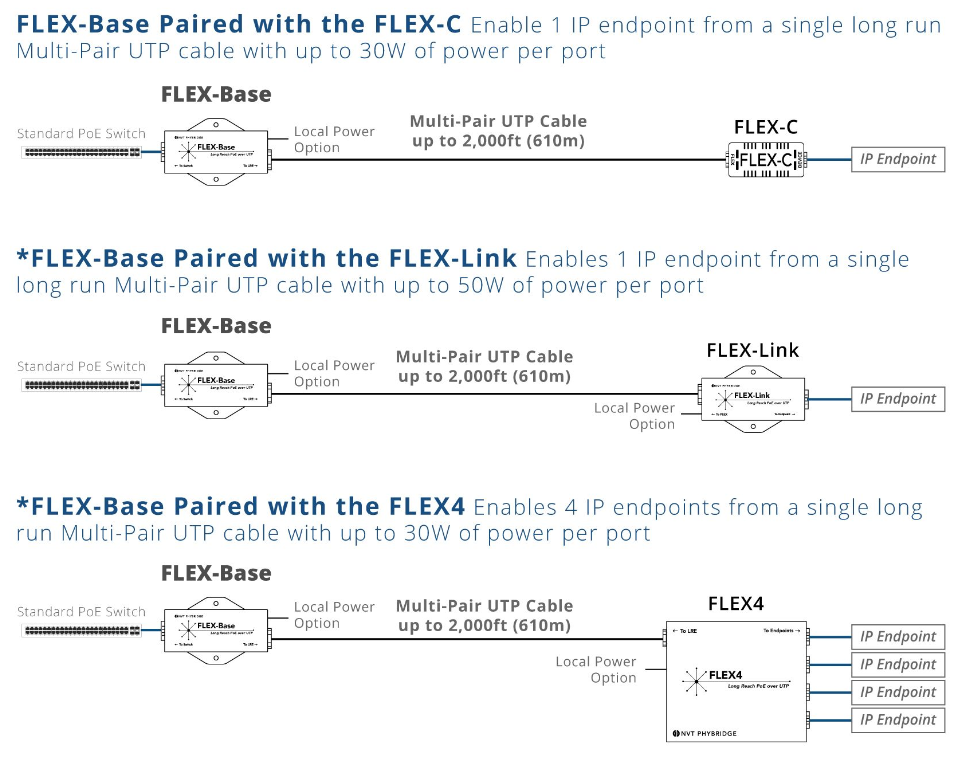

The FLEX-Base is connected at the head end and one of the three adapters (FLEX-C, FLEX-Link, or FLEX-04) is connected at the far end. (Picture for reference)

You can refer to the Video tutorial to know more about the FLEX-base extender solution.

You’ll find additional resources like the Datasheet, Admin Guide, A&E spec sheet, etc on the product page here.
