What is the FLEX-Link (NV-FLXLK) adapter?

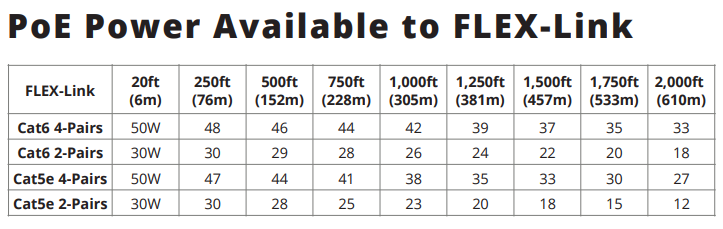

The FLEX-Link (NV-FLXLK) adapter, when utilized alongside the FLEX24 Switch, FLEX8 Switch, or FLEX-Base Extender, facilitates the extension of Ethernet and PoE capabilities well beyond conventional distance limitations. This setup is capable of delivering power up to 50W when locally powered and 30W via inline PoE, supporting PoE mode A, mode B, and 4-pair mode. An option for local power further enhances its flexibility, ensuring compliance with IEEE standards.

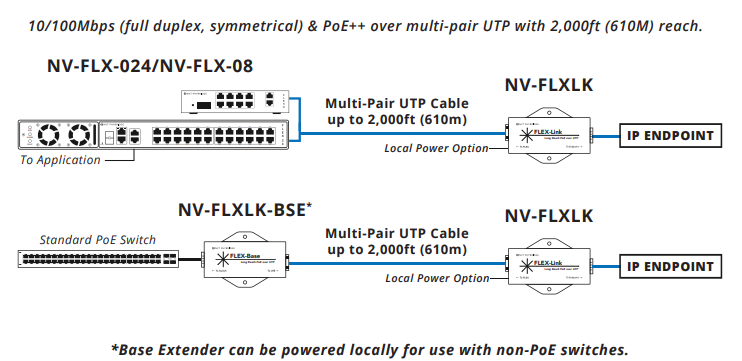

FLEX-Link Adapter Applications are designed to provide 10/100Mbps (full duplex, symmetrical) and PoE++ over multi-pair UTP cables, achieving distances up to 2,000ft (610M). This configuration is facilitated by models such as the NV-FLXLK-BSE and NV-FLXLK, or in combination with standard PoE switches like the NV-FLX-024 or NV-FLX-08. The ability to utilize multi-pair UTP cables for such extended reaches allows for the bypass of the costs and logistical challenges associated with Intermediate Distribution Frame (IDF) closet installations.

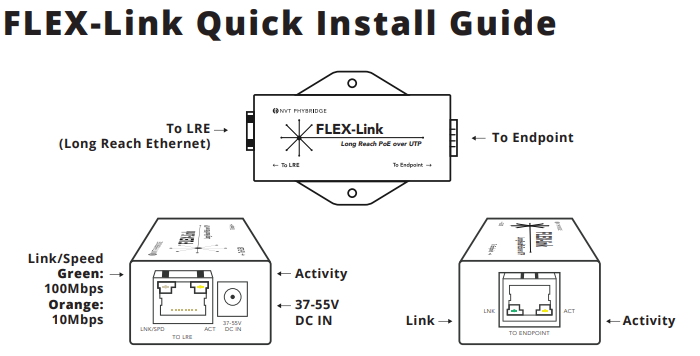

For more detailed guidance on deploying this technology, please refer to the FLEX-Link Quick Install Guide, available at: FLEX-Link Quick Install Guide. This guide provides comprehensive information on achieving long-range PoE over UTP for IP endpoints, ensuring straightforward and efficient setup.
