Power Over Ethernet Innovations: NVT Phybridge Product Catalog
Note: Please review the PDF content at the bottom of the page.
Explore how NVT Phybridge is overcoming traditional PoE switch limitations and driving successful digital transformations. Our CHARIoT series of PoE switches and extender solutions extend PoE capabilities significantly beyond the usual limitations, providing up to 18-times the reach of traditional solutions.

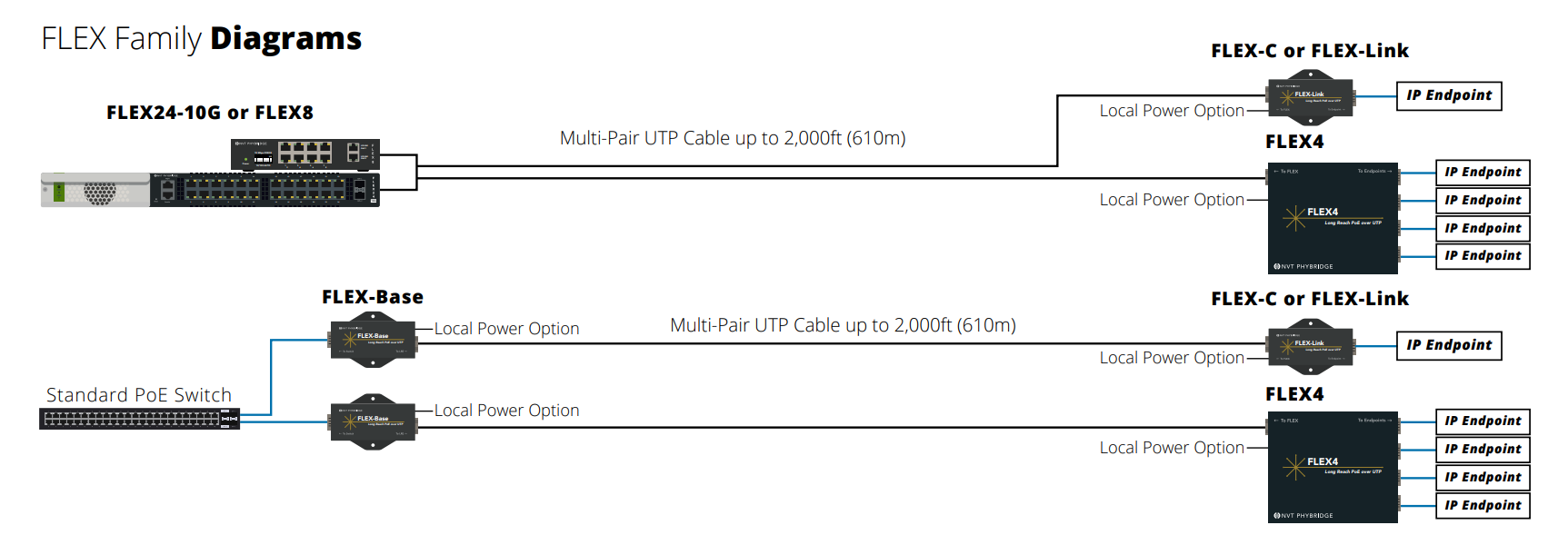

FLEX Family Ethernet Switches & Adapters: Ethernet and PoE over Multi-Pair UTP
The FLEX Family of switches and adapters are specifically engineered to extend Power over Ethernet (PoE) connectivity up to 2,000 feet (610 meters) using multi-pair UTP infrastructure. This capability makes the FLEX Family ideal for deployments in a wide range of environments, utilizing both existing and new UTP cabling systems to provide enhanced network reach and flexibility.
| Product Category | Model | Description | Key Features |
|---|---|---|---|
| Switches & Single Extender | FLEX24-10G (NV-FLX-024-10G) | 24-port managed long reach PoE++ switch | Layer 2-3, 10/100/1000Mbps, up to 2,000ft reach |
| FLEX8 (NV-FLX-08) | 8-port plug-and-play long reach PoE switch | 10/100Mbps, up to 2,000ft reach | |
| FLEX-Base (NV-FLXLK-BSE) | Base unit for long reach PoE extender | 10/100Mbps, supports up to 50W, up to 2,000ft reach | |
| Adapters | FLEX4 (NV-FLX-04) | Adapter for extending PoE up to 2,000ft | Supports up to 30W per port, powers 802.3af / 802.3at devices |
| FLEX-C (NV-FLXLK-C) | High power adapter for long reach PoE | Up to 50W power, up to 2,000ft reach, powers 802.3af / 802.3at devices | |
| FLEX-Link (NV-FLXLK) | Adapter for multi-pair UTP deployment | Supports IEEE compliance, up to 2,000ft reach, powers 802.3af / 802.3at devices |
CLEER Family Ethernet Switches & Adapters: Ethernet and PoE over Coax
The CLEER Family of switches and extenders utilize Coax infrastructure (either existing or new) to extend PoE connectivity up to 6,000ft (1,830m), based on RG11 cable. For detailed cable performance characteristics, please refer to individual product datasheets.
| Product Category | Model | Description | Key Features |
|---|---|---|---|
| Switches & Single Extender | CLEER24-10G (NV-CLR-024-10G) | 24-port managed long reach PoE++ switch | Layer 2-3, 10/100Mbps, PoE++ (50W) over Coax, up to 6,000ft reach, MAC security, AAA with TACACS+/RADIUS, power management, EN 50121-4 standard |
| EC10 Switch (NV-EC-10) | 10-port plug-and-play long reach EoC PoE switch | 100Mbps full duplex, PoE+ (30W) over Coax, up to 3,000ft reach, 2 x 1GB uplink ports, 165W power supply, EN 50121-4 standard | |
| EC-Base Extender (NV-ECLK-BSE) | Base unit for 1-port long reach PoE Extender | Negotiates with PoE switch, paired with EC-Link+ or EC4 for up to 6,000ft reach, can be locally powered, EN 50121-4 standard | |
| Adapters | EC-Link (NV-ECLK) | Adapter to extend PoE up to 4,000ft (1,220m) | Converts Coax to RJ45, supports IEEE-compliant devices, 30W power, can be locally powered, EN 50121-4 standard, powers 802.3af / 802.3at devices |
| EC-Link Plus (NV-ECLK-PLS) | Adapter to extend PoE up to 6,000ft (1,830m) | Enhances Coax to RJ45 conversion, delivers up to 50W power, supports 802.1x, can be locally powered, EN 50121-4 standard, powers 802.3af / 802.3at devices | |
| EC4 Adapter (NV-EC-04) | Enables 4 IP devices from a single Coax run, extends up to 3,000ft (915m) | Supports IEEE-compliant devices, delivers PoE power (up to 30W), can deliver up to 50 watts per port, locally powered option, EN 50121-4 standard, powers 802.3af / 802.3at devices |

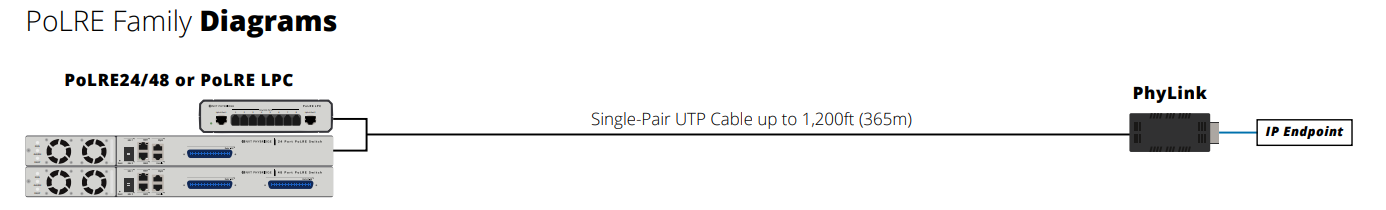

PoLRE Family Ethernet Switches & Adapters: Ethernet and PoE over Single-Pair UTP
The PoLRE Family of switches and adapters utilize single-pair UTP infrastructure to extend PoE connectivity up to 1,200 feet (365 meters), ideal for environments requiring extended reach with minimal cabling.
| Product Category | Model | Description | Key Features |
|---|---|---|---|
| Switches | PoLRE LPC Switch (NV-PL-08) | 8-port plug-and-play long reach single-pair PoE switch | 10Mbps full duplex, PoE (15W) over single-pair UTP, up to 1,200ft reach, 2 x 1GB uplink ports, 110W power supply |
| PoLRE24 Switch (NV-PL-024) | 24-port managed long reach single-pair PoE switch | 10Mbps full duplex, PoE (15W) over single-pair UTP, up to 1,200ft reach, 2 x 1GB uplink ports, 2 x 1GB fiber uplink ports, management GUI, 500W or 1,000W power supply | |
| PoLRE48 Switch (NV-PL-048) | 48-port managed long reach single-pair PoE switch | 10Mbps full duplex, PoE (15W) over single-pair UTP, up to 1,200ft reach, 2 x 1GB uplink ports, 2 x 1GB fiber uplink ports, management GUI, 500W or 1,000W power supply | |
| Adapters | PhyLink Adapter (NV-PLLK) | Adapters for PoLRE24/48 and PoLRE LPC | Converts RJ11 to RJ45 for standard Ethernet cable, supports IEEE compliant devices, delivers up to 15W of power, sold in packs of six, powers 802.3af devices |
1701+ Solution: Ethernet and PoE over Coax, UTP, or 2-Wire Cable

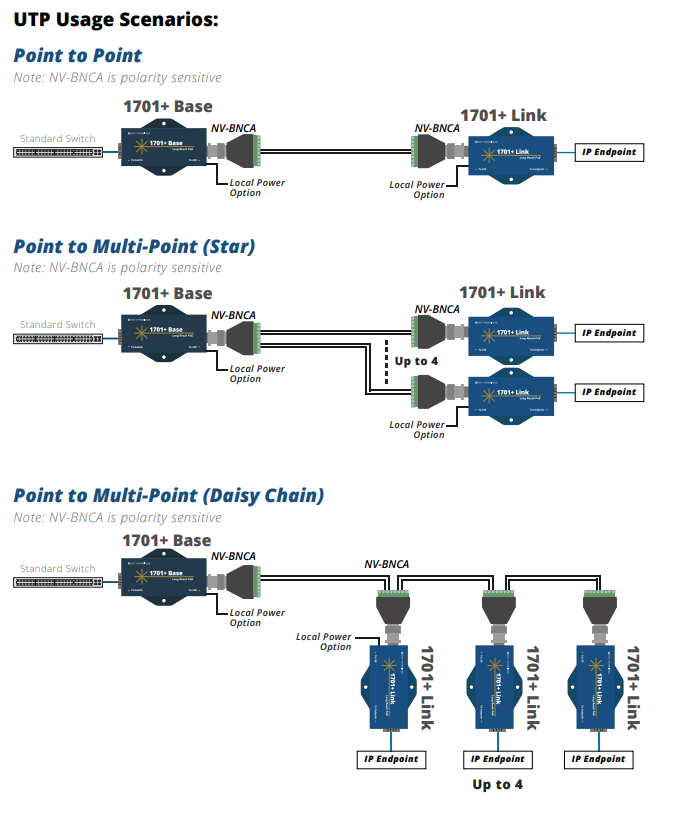

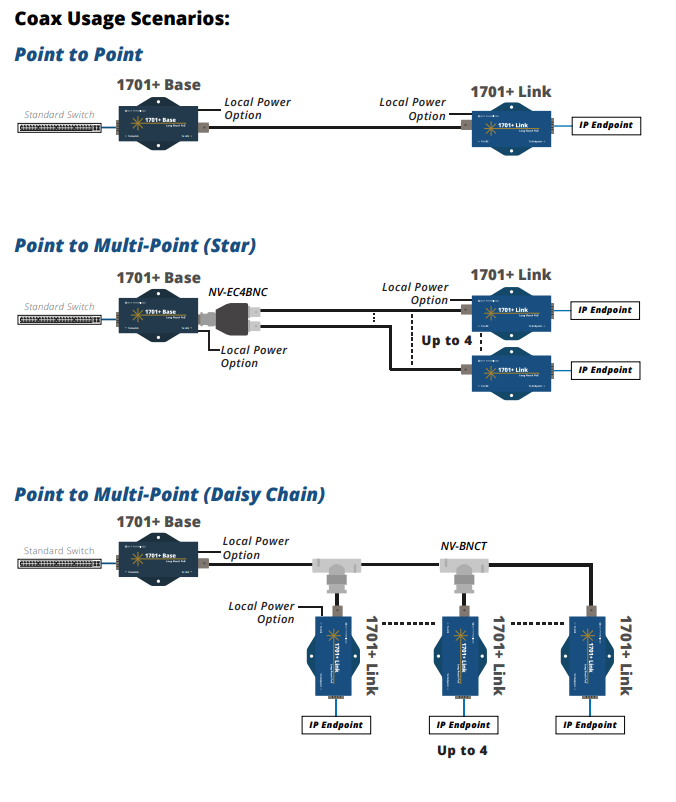

The 1701+ Extender Solution extends PoE connectivity up to 8,000 feet (2.4 km) using Coax, single-pair UTP, or 2-wire cables, making it highly adaptable for a range of deployment environments.
| Product Category | Model | Description | Key Features |
|---|---|---|---|
| Base Extender | 1701+ Base (NV-EC1701PLS-BSE) | Head end unit, used at the network closet side, coax and single pair wire | Data rate up to 420 Mbps, locally powered for up to 100W, supports point-to-multi-point topology, IEEE-compliant, LED indicators, powers 802.3af / 802.3at devices |
| Link Adapter | 1701+ Link (NV-EC1701PLS-LK) | Remote end unit, used at the IP endpoint side, coax and single pair wire | Data rate up to 420 Mbps, provides up to 50W power when locally powered, connects IP endpoints up to 328 ft (100m) away, IEEE-compliant, powers 802.3af / 802.3at devices |
| Kits | Single 60 Watt System (NV-EC1701PLS-XKIT) | 1:1 kit, Includes 1 Base, 1 Links, and additional accessories | Designed for smaller or individual extensions, includes power supply, BNC adapters, and Coax cable, powers 802.3af / 802.3at devices |
| 1:2 kit, 110 Watt System (NV-EC1701PLS-K2H) | 1:2 kit, Includes 1 Base, 2 Links, and additional accessories | For setups needing moderate extension capabilities over Coax or UTP, includes power supply, BNC adapters, and Coax cable, powers 802.3af / 802.3at devices | |
| 1:3 kit, 110 Watt System (NV-EC1701PLS-K3H) | 1:3 kit, Includes 1 Base, 3 Links, and additional accessories | Suitable for larger setups, includes power supply, multiple BNC adapters, Coax splitter for broader distribution, powers 802.3af / 802.3at devices | |
| 1:4 kit, 110 Watt System (NV-EC1701PLS-K4H) | 1:4 kit, Includes 1 Base, 4 Links, and additional accessories | Ideal for extensive network extensions, includes power supply, multiple BNC adapters, Coax splitter for wide distribution, powers 802.3af / 802.3at devices |
